全球設計風向感謝來自 COLORFULL 昱景設計 的商業綜合體項目案例分享：
01 項目概況 Project Overview
西安，現時的陝西省省會，彼時的千年古都——“長安”。
Xi’an, now the capital of Shaanxi Province, was then called “Chang’an” as the capital of several dynasties since thousands years ago.
作為古絲綢之路的起點，曆代都城的繁榮昌盛，帶給這座城市深厚曆史底蘊。長安時間，以城市之名承載古都今昔，以建築之姿伴隨古都迎向未來。
As the starting point of the ancient Silk Road, the prosperity over the ages has brought the city a deep historical heritage. Chang’an Times, carries the ancient capital in the present and the past in the name of the city, and accompanies the ancient capital to the future with the posture of architecture.

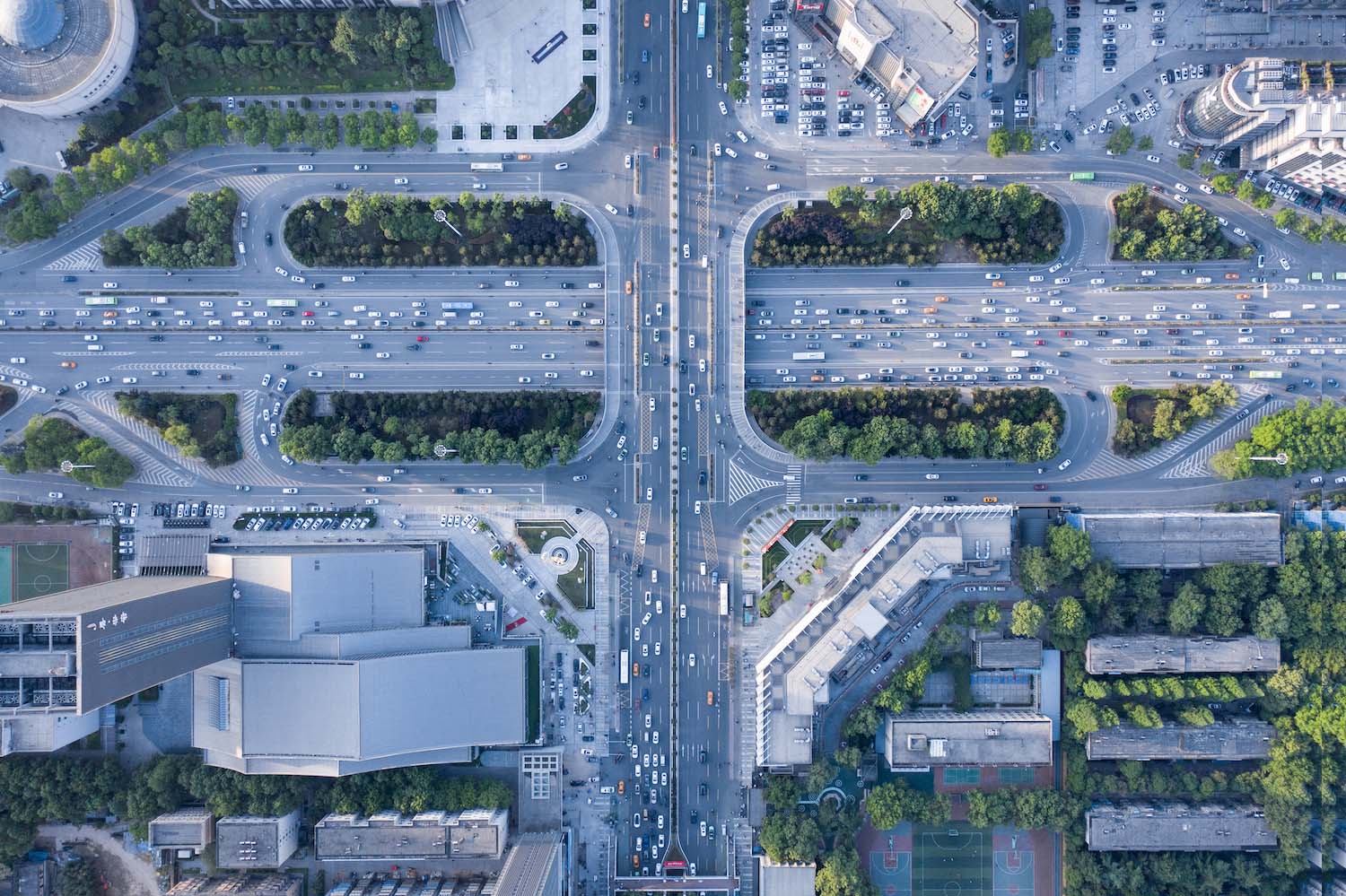

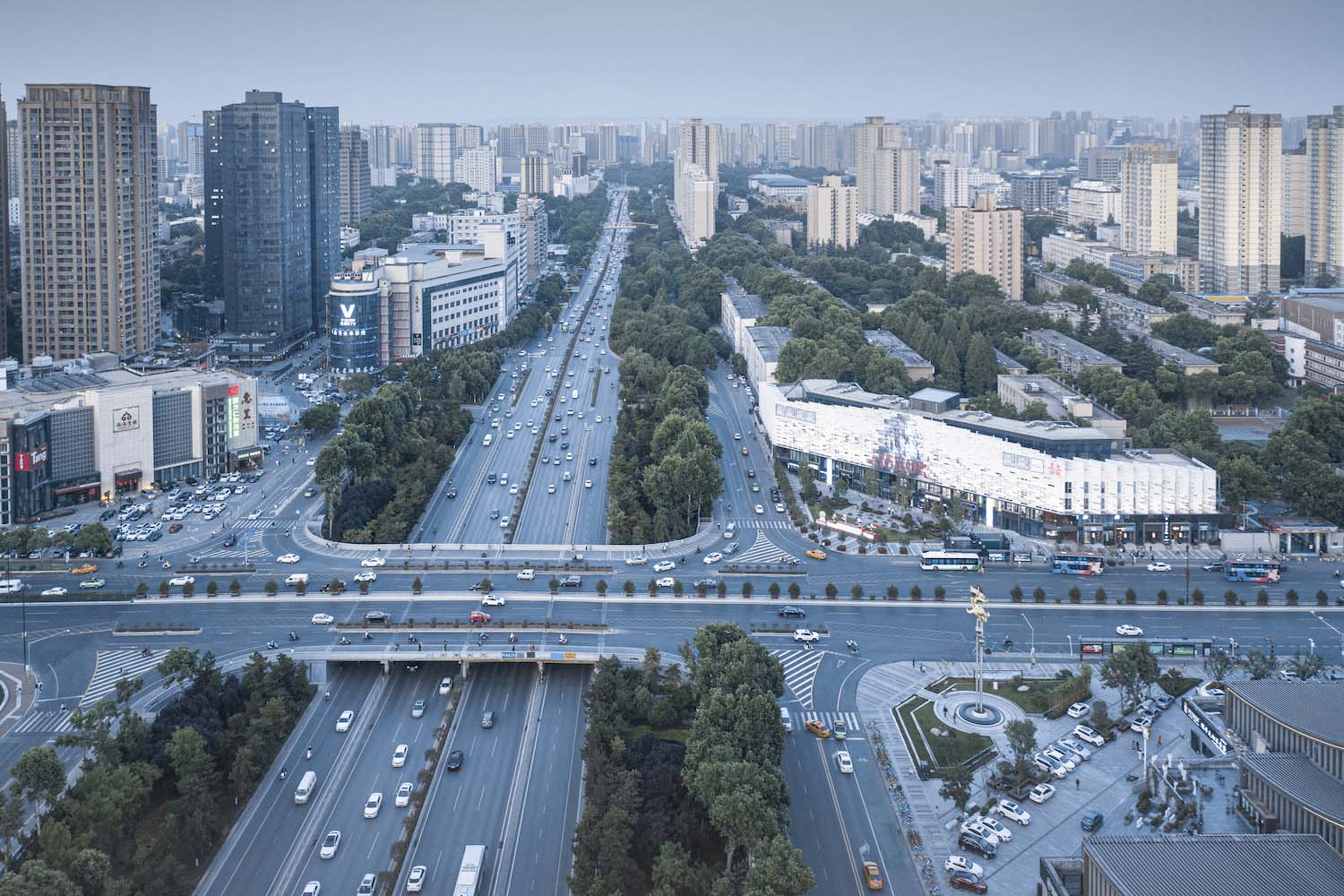

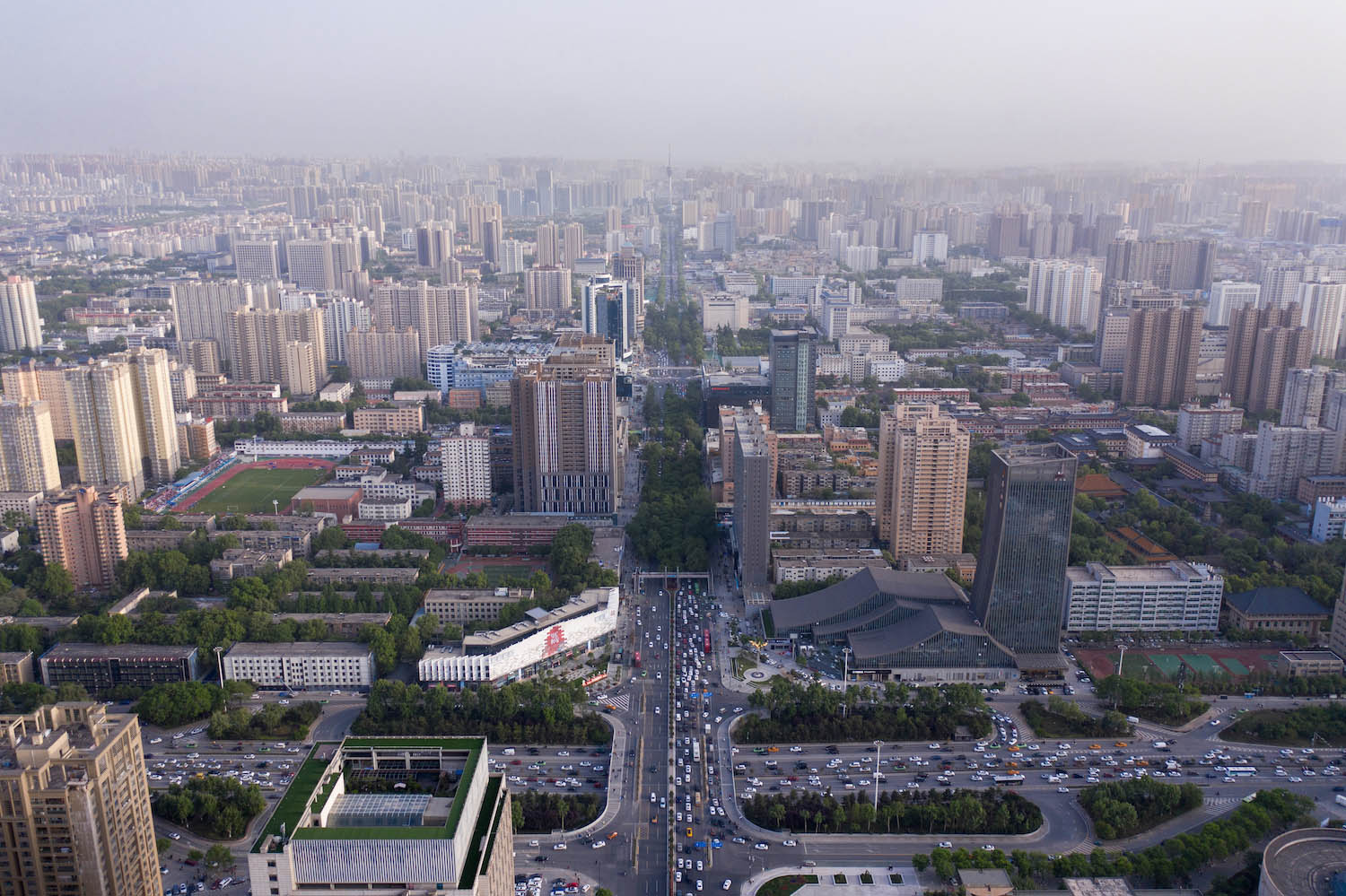

項目位於城市地標鍾樓向南三公裏處，為西安中軸龍脈“長安中路”與二環線的交彙樞紐。周邊有長安大學、陝西省圖書館等文化教育設施，更緊鄰西北第一商圈“小寨商圈”，擁有得天獨厚的地理優勢。
The project is located three kilometers away from Bell Tower, at the intersection of Chang’an Middle Road, the central axis of Xi’an, and the Second Ring Road. It is surrounded by cultural and educational facilities such as Chang’an University and Shaanxi Provincial Library, and is also close to the Xiaozhai business district, the number one business district in Northwest China, which is a unique geographical advantage.

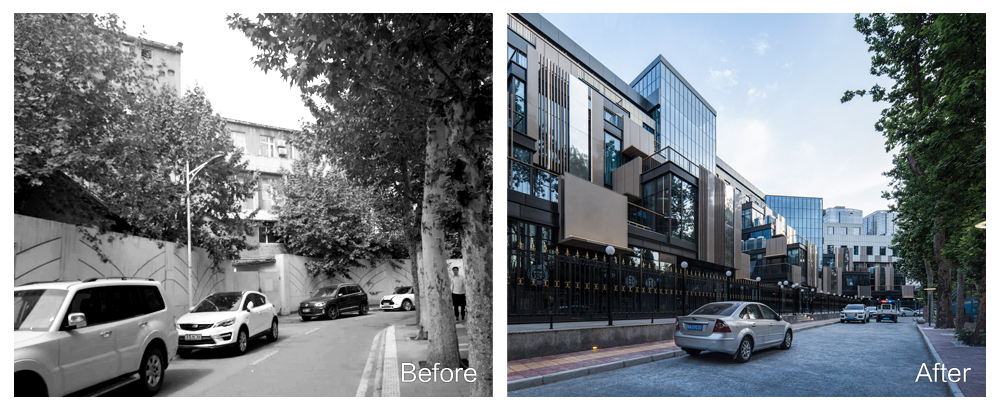

長安時間的前身是1955年建造的西安汽車機械學校，最早為磚混結構，後西側擴建成框架結構，東側擴建後仍為磚混結構。改造前此處為五層樓的U型多租戶建築，改造後則為可容納商業及教育商戶和辦公室的商業綜合體。
Chang’an Times used to be Xi’an Automobile and Machinery School. It was built in 1955 in a brick and mortar structure. Later after expansion, the west side was in frame structure, while the east side was still in brick and mortar structure. Before the renovation, it was a five-story U-shaped multi-tenant building, and now it’s became a commercial complex for commercial and educational stores and offices.
從曆史古城中軸線上的故事出發，將古都城牆符號融入設計，長安時間的東西兩側以兼具商業和人文價值的設計理念結合市景，使西安的曆史傳承和建築可持續價值盡現眼前，創造了美好的古都新篇。
Starting from the history of the old city’s central axis, we integrated the symbol of the ancient city wall into our design, and made the east and west sides of Chang’an Times fit the city view in different ways, with a design concept that has combined commercial and humanistic values, so that the historical heritage of Xi’an and the architectural sustainability values are in full view, creating a beautiful new chapter of the ancient city.
02 項目設計理念 Design Concept
在西安，古時城牆仍屹立在城市中央，這樣一種新舊對比，正是古都獨特的魅力所在。因此，長安時間的設計初衷便是納入西安城牆元素，以尊重城市曆史積澱為基石，通過對城牆上一磚一瓦的精細測量與研究實踐，為西安打造出了新時代的標誌性地標。
In Xi’an, the ancient city walls are now still standing in the middle of the city, the contrast between the old and the new is the unique charm of this ancient capital. Therefore, the core of our design is to create an iconic landmark of the new era of Xi’an, which incorporates the elements of Xi’an city wall and respect for the city’s history, by measurement and research of the bricks on the city wall.
項目西側麵朝車水馬龍的市井大街，我們以大尺度的建築外立麵回應了城市的恢弘氣勢；而東側則因麵向長安大學校址，為對應豐富的人文元素與綠地交織，從而設計了一塊向行人開放的立體商業區，並透過城牆前後（裏外）組合展現了整體空間結構。
On the west side of the project facing the city axis, we designed a large-scale facade responding to the grandeur of the city; while on the east side facing the Chang’an University, we designed a three-dimensional commercial area open to pedestrians in order to correspond to the rich humanistic elements interwoven with the green space, and show the overall spatial structure through the combination of the front and back (inside and outside) of the city wall.
03 設計細節 Details

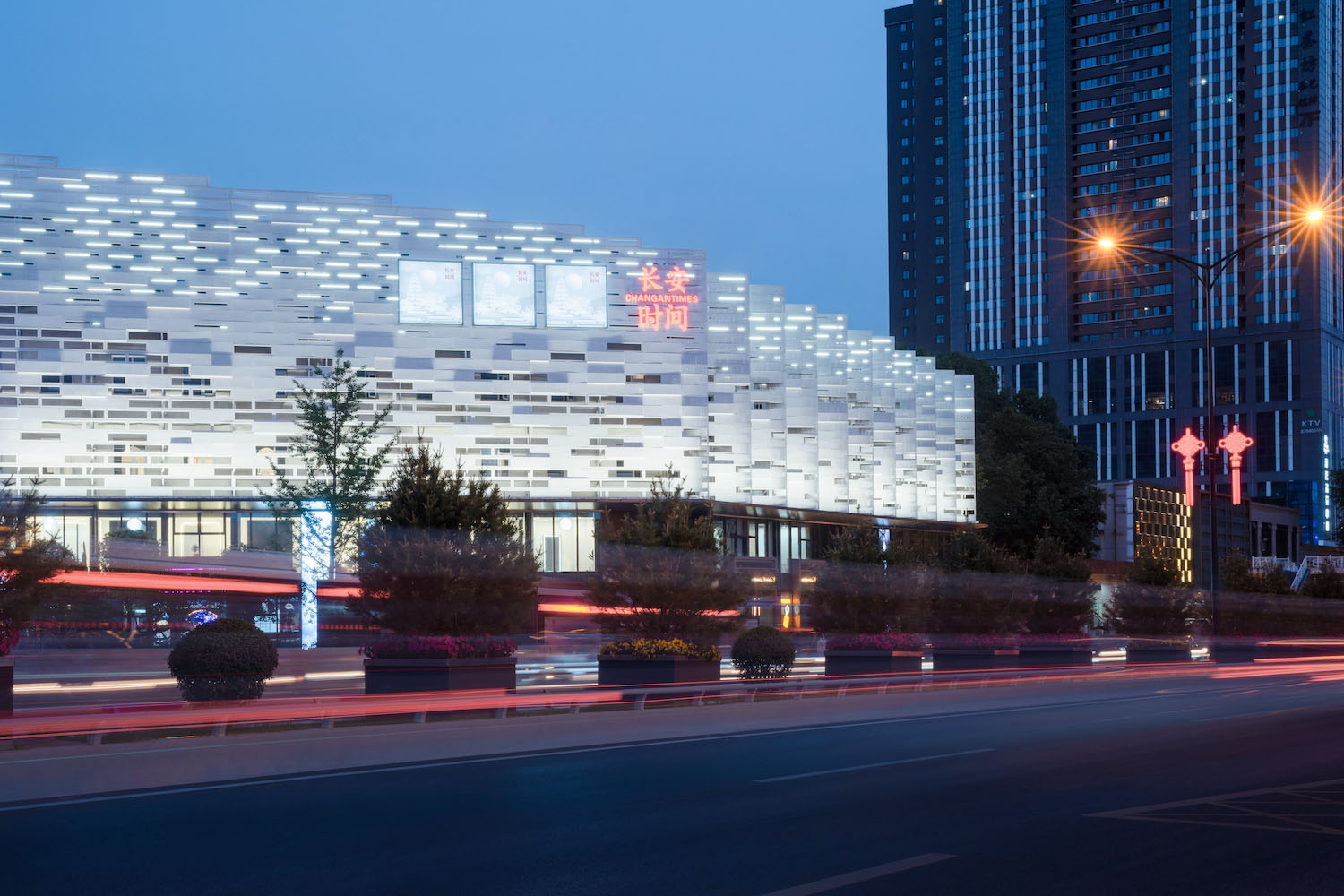

・西側：麵朝長安路 The west side: Facing Chang’an Road

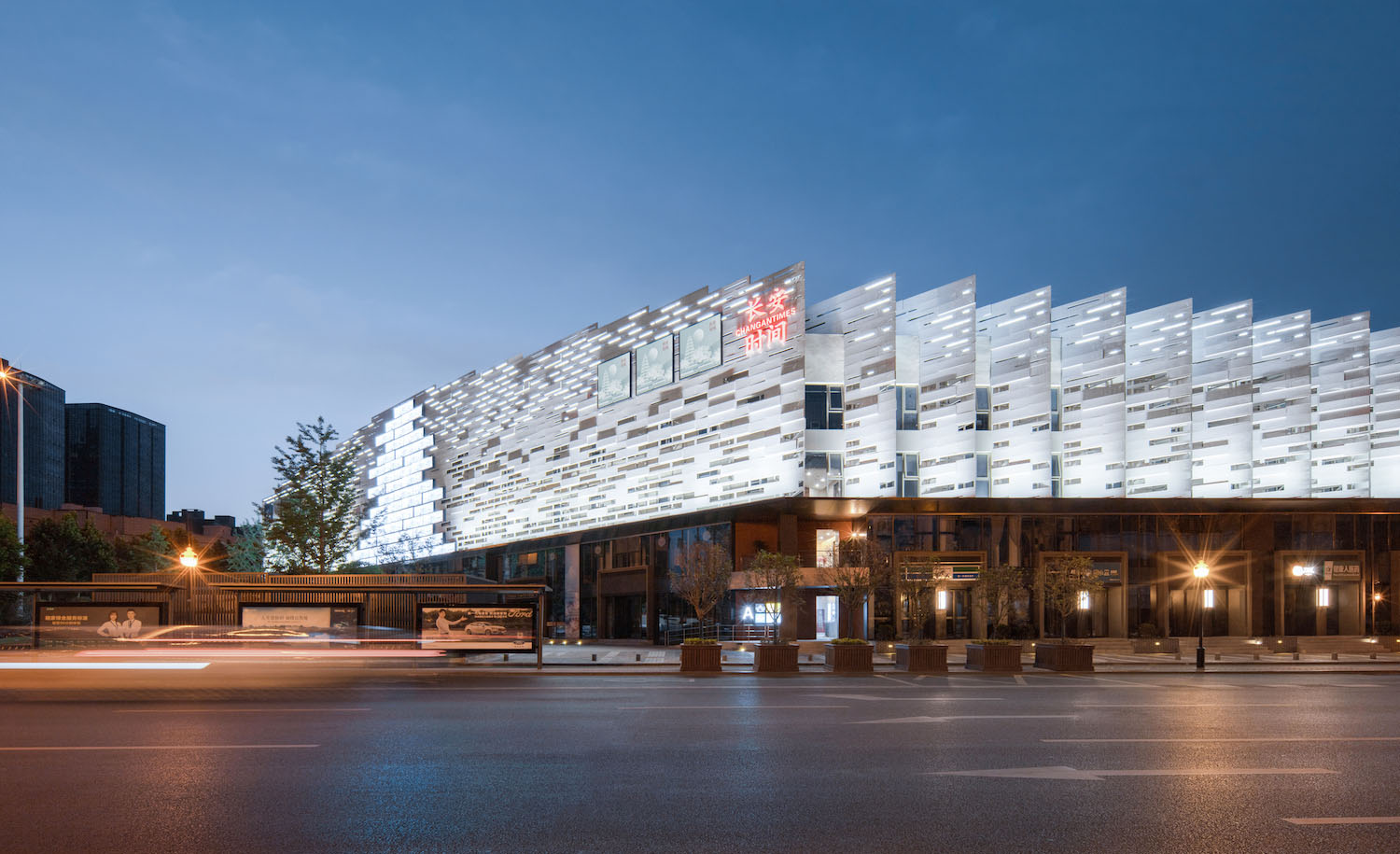

建築外立麵大麵積與西安城牆主題結合，上層模擬城牆磚塊係統，以三種不同的塊狀鋁賦予建築獨特個性；下層門店部分則采用了挑高幕牆，進而提升門店內部的可見度。長安時間外立麵上下層的組合，使建築外觀看似古城牆漂浮在現代帷幕上，兼具美觀與象征意義。
The building facade is in Xi’an City Wall theme. The upper level simulates the brick system of the city wall by using three different block shapes of aluminum, which brings the building its own character; the lower store section features a high curtain wall, which enhances the visibility of the stores’ interior. With the combination of the different designs of the facade, it looks like that the great ancient city wall is floating there, which is both beautiful and symbolic.

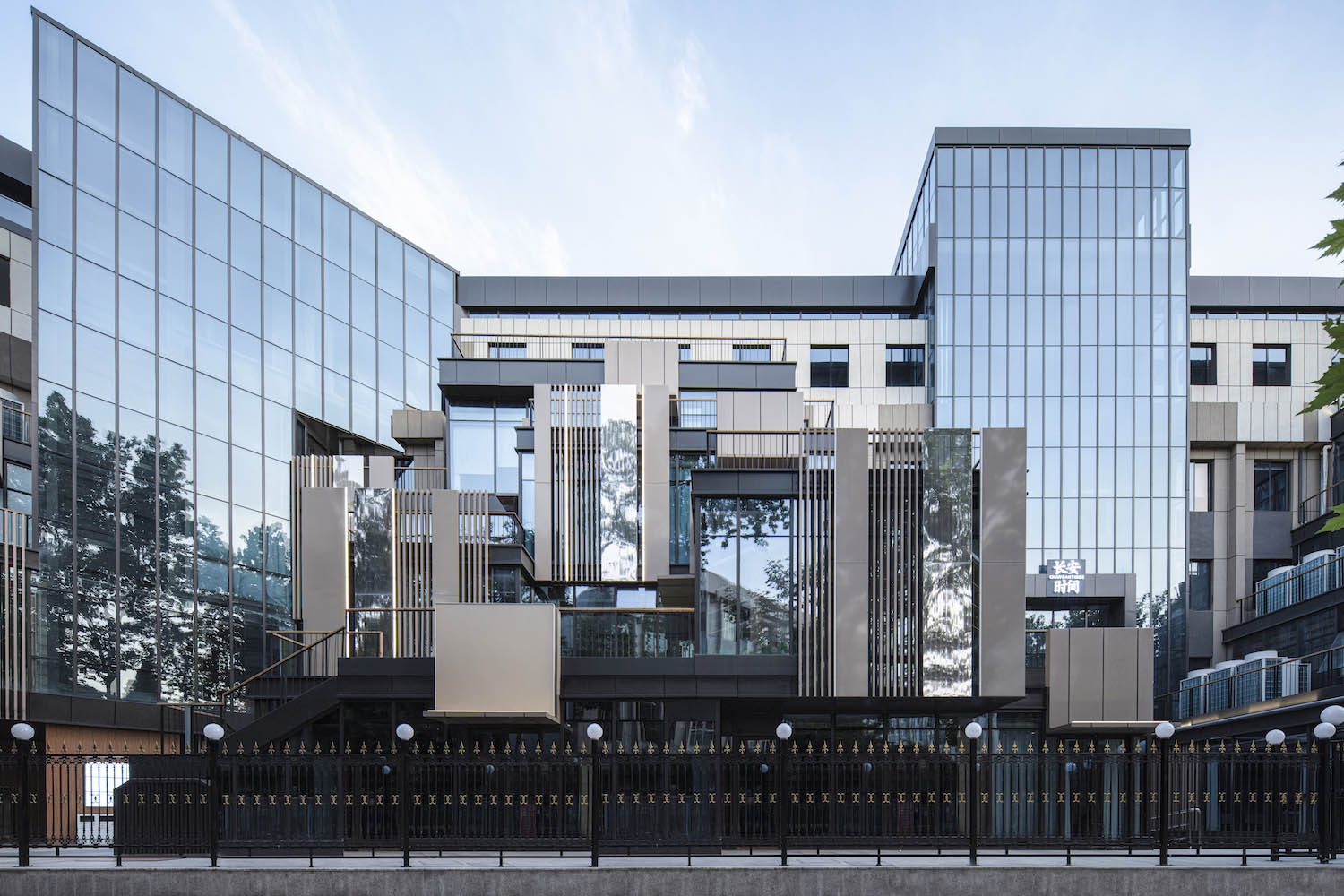

・東側：麵朝長安大學校址 The east side: Facing Chang’an University
東側因麵向綠地和校園，使用了一種類似於梯田的設計，通過精細分割空間，創造了與長安路側相對比的人性化空間。設計裏使每家商戶都擁有一個開放的露台，使往來的人們可恣意穿梭城市與綠意之間。
On the east side facing much green space and the campus, we designed a terrace-field-like commercial area by detailed calculation and division and made it more user-friendly. Each store owns an open terrace so that people can travel between the city facility and the nature at will.
・建材挑選 Materials

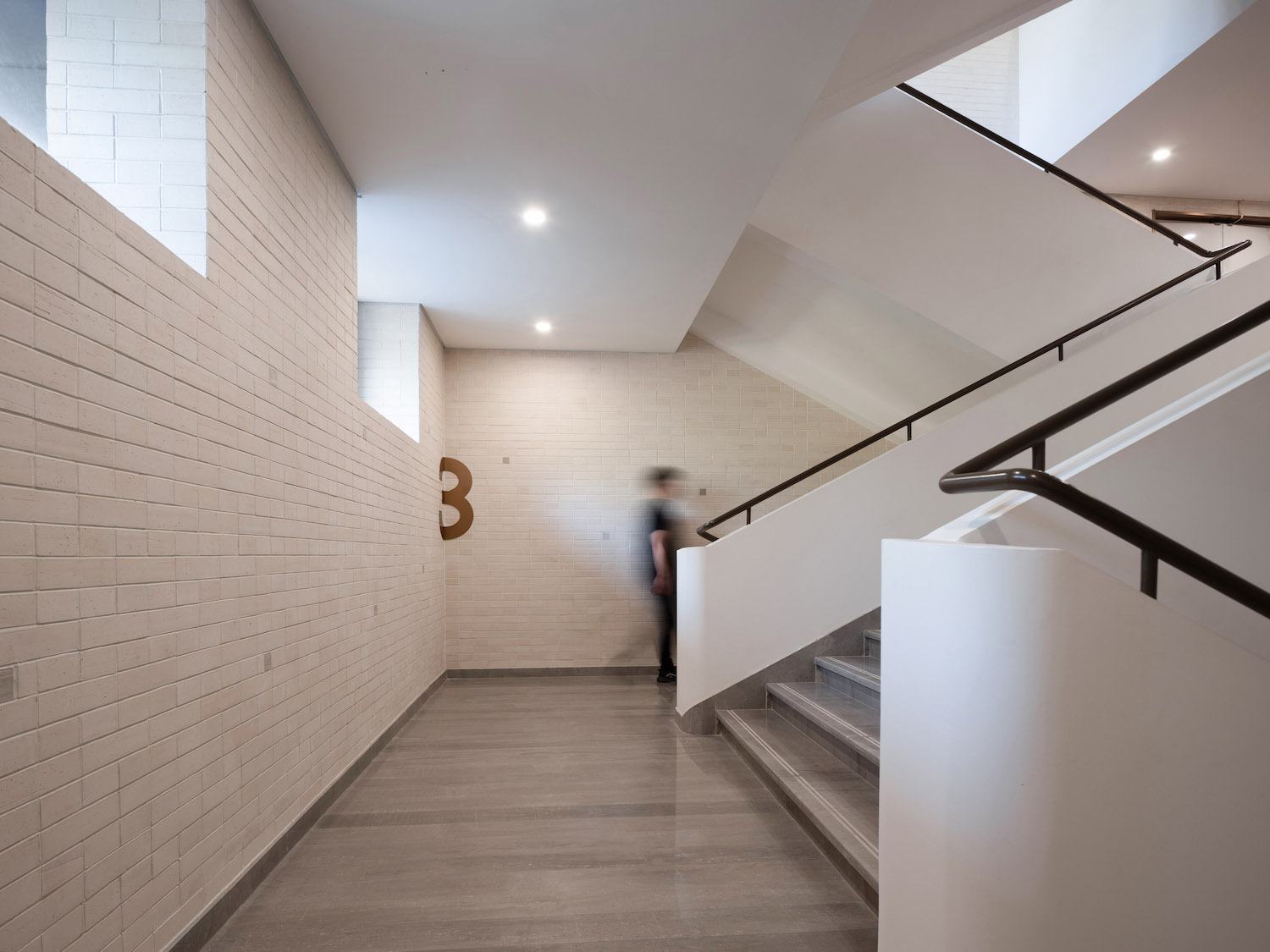

考慮到項目位於開發區，建材選用了穿孔鋁板和玻璃，打造西安的城市印象。項目內部則大量融入傳統元素，以牆磚的使用與外立麵設計相互呼應。此外，長安路一側以白色為主色調，長安大學一側則以與之對比的大地色調為主。
Considering the project’s location in the development zone, perforated aluminium panels and glass are adopted to create an urban impression of Xi’an. Meanwhile, inside the project, where traditional elements are much used, we also use wall tiles to echo the design of west facade. In addition, the dominant color of the Chang’an Road side is white, while of the Chang’an University side is earth tones in contrast.
・ LED 麵板 LED Panel
在長安路一側可見一塊牆磚元素拚接的巨型異形LED燈板，燈板屏幕本身亦采用凹凸的城牆肌理設計，將高科技作為建築外立麵的一部分，使其可展露更豐富且多元的表情。我們同時設計了對應LED形態的視頻進行投影展示，以燈光映射襯出古都的時尚，將建築融合進時代的潮流。
On the facade facing Chang’an Road, we designed a special-shaped LED screen spliced by many smaller panels in brick shape. The panel screen is designed with a concave and convex city wall texture, allowing itself to own a richer and more diverse expression. We also designed a video projection display corresponding to the LED form, using the light to show the modernism of the ancient capital and integrate the building into the trend of the times.
04 總結 Vision
隨著整個建築行業往“可持續”方向發展的風潮，利用城市現有建築進行改造是全球趨勢。西安城區規模宏大，中心主幹道的範疇直線距離約20公裏，其中建築跨越千年，如今在同一個時間維度與人們共存。基於城市規模及地標建築象征意義的關係，長安時間集結城市精華，正麵古今交彙的象征意義令人印象深刻，背麵則提供了豐富的步行空間，創造了建築的雙重可持續性，為西安提供了嶄新的非凡體驗。
As sustainability is becoming more and more valued nowadays, there is a global trend to reuse existing buildings in cities. Xi’an’s urban area is large in scale, with the central main road of about 20 kilometers, in which buildings spanning thousands of years and now coexist with people at the same time. Based on the relationship between the scale of the city and the symbolism of the landmark, Chang’an Times gathers the charm of the city, with an impressive symbolism of both the ancient and the modern on the front side, and a rich walkable space on the back side, creating a double sustainability of the architecture and providing a new and extraordinary experience for Xi’an.
在曆史名城西安，長安時間將不止是城市的新標誌建築，承載著古都象征意義，它將成為區域的活化劑，將城市的古韻與新潮深度糅合。
In the well-known historic city of Xi’an, Chang’an Times will be more than a new symbolic building of the city, it will become the activator of the region, blending the ancient charm with the new trend of the city.

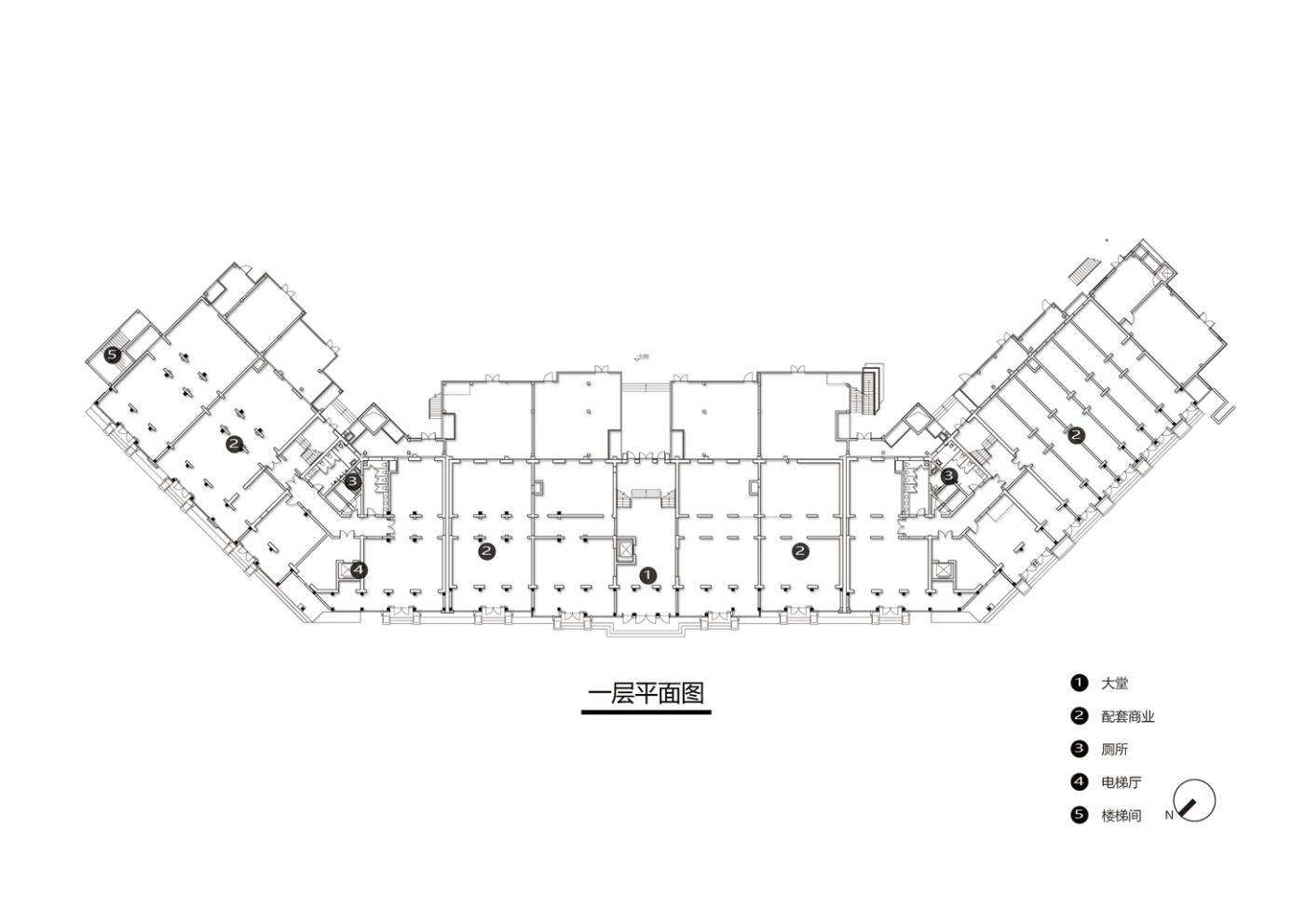

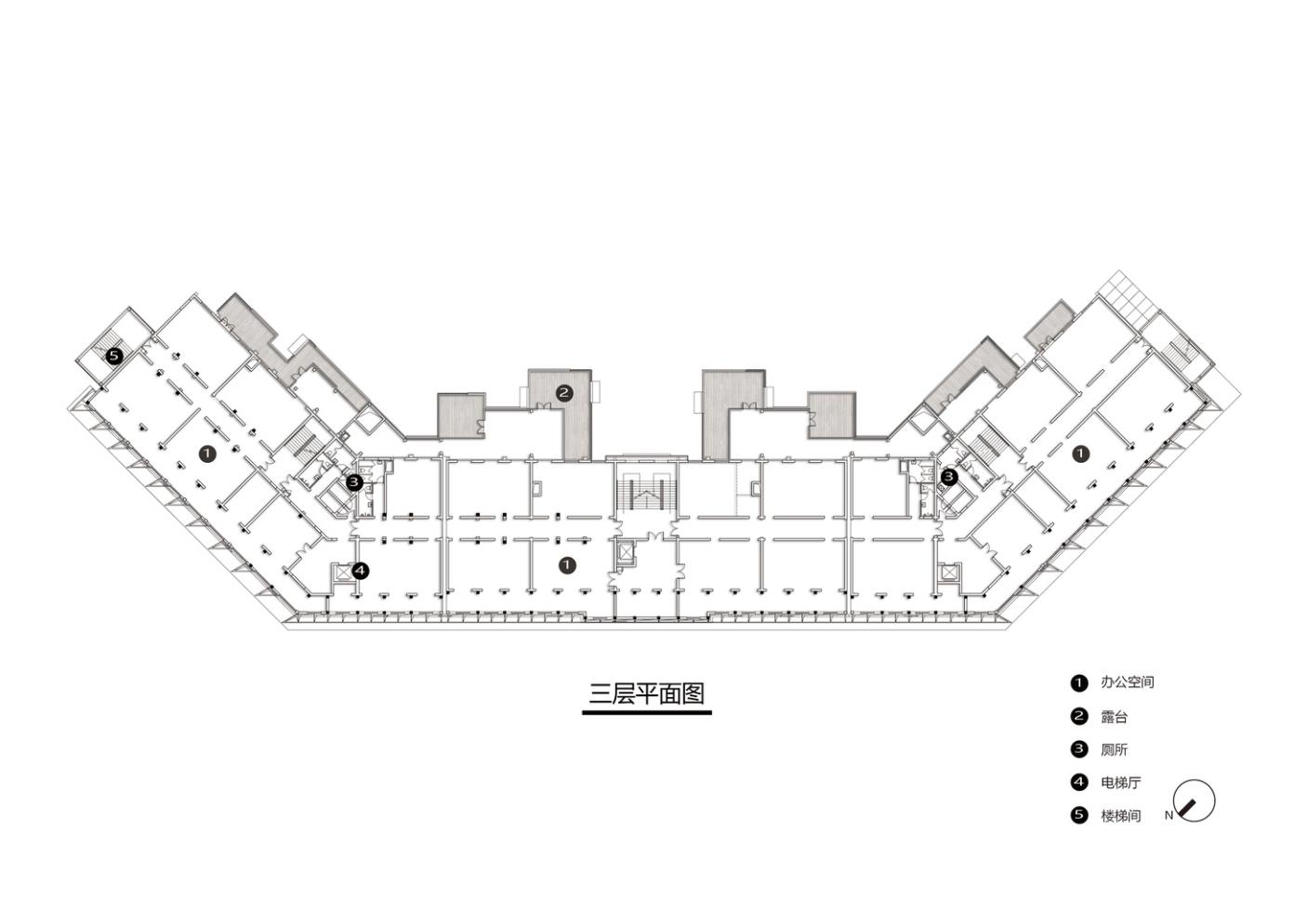

∇ 平麵圖 Plan

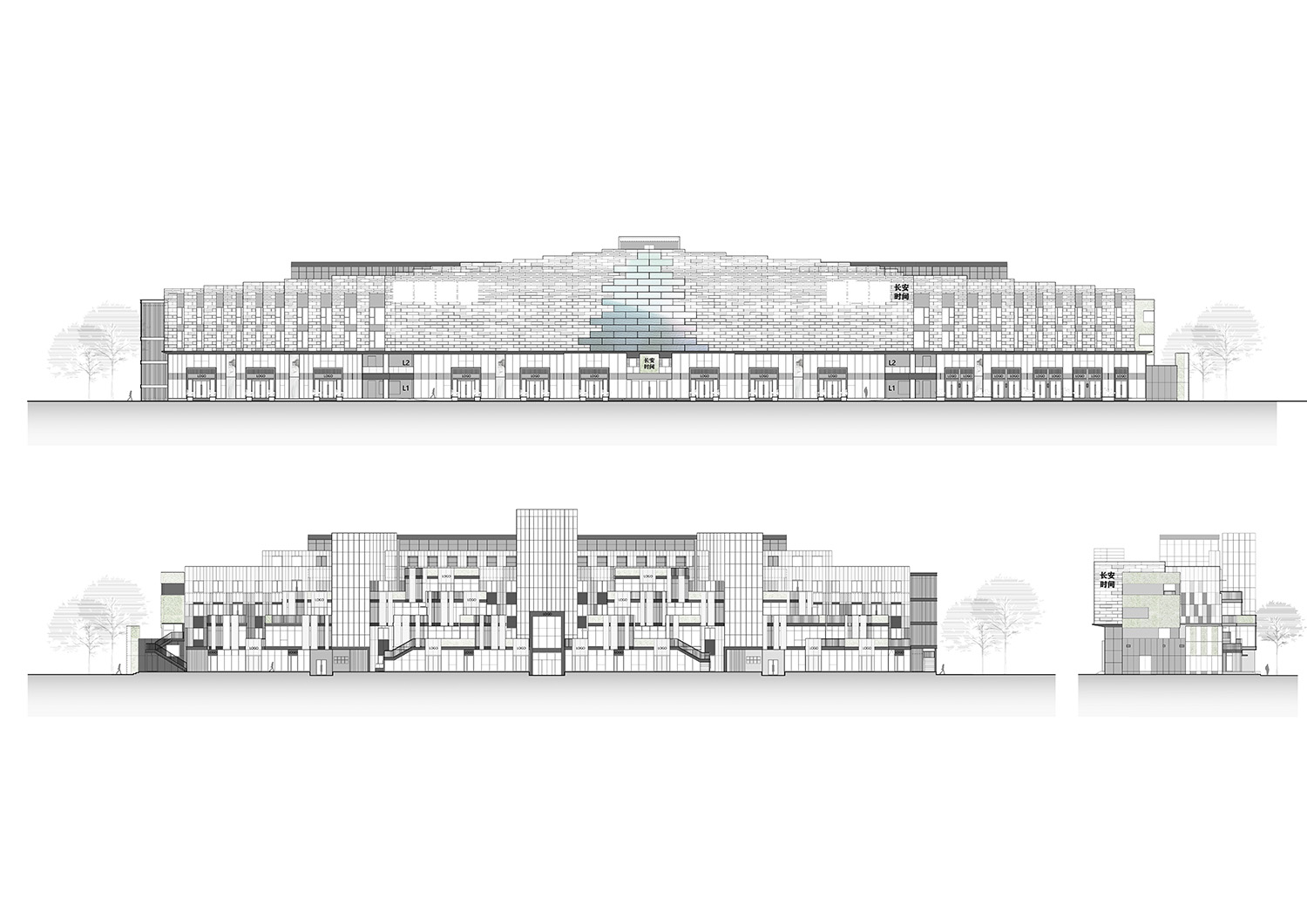

∇ 立麵圖 Elevations

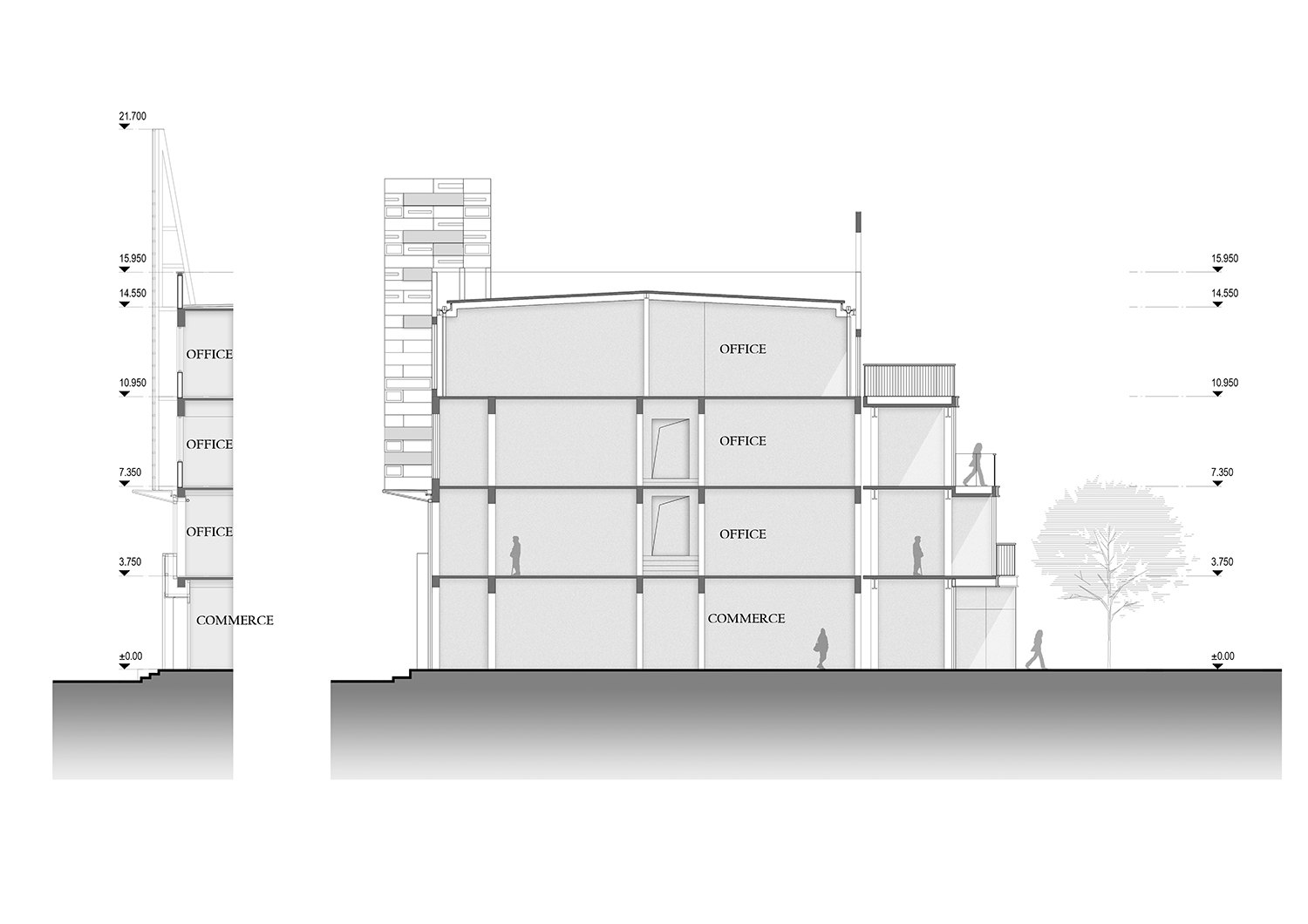

∇ 剖麵圖 section
項目信息
項目名稱：長安時間
項目地址：陝西省西安市雁塔區長安中路239號
設計方：COLORFULL 昱景設計
建築麵積：12,000㎡
公司網站：http://www.colorfull-design.com/
聯係郵箱：cf@colorfull-design.com
項目設計 & 完成年份：2021
設計指導：趙宗陽、小野良介
建築方案：川合豐、錢楊婷、張顥
建築深化：張顥、錢楊婷
室內方案：孫秀雲、朱麗豔
室內深化：李立群、張阿平、張凡星、朱麗豔
LED展示內容設計：川合豐
攝影版權：直譯建築攝影
客戶：西安愷英產業運營有限公司
材料：文化磚-宜興和特陶瓷特技有限公司; 地磚-達倫磁磚; 塗料-立邦
Project name：Changan Times
Project location：No. 239, Chang’an Middle Road, Yanta District, Xi’an, Shaanxi Province
Design：COLORFULL YUJING DESIGN
Gross Built Area (square meters)：12,000㎡
Website：http://www.colorfull-design.com/
Contact e-mail：cf@colorfull-design.com
Design year & Completion Year：2021
Design Guidance：Sunny Zhao, Ryo Ono
Architecture plan: Yutaka Kawai, Yangting Qian, Hao Zhang
Building deepening: Hao Zhang, Yangting Qian
Interior plan: Sylvia Sun, Jolie Zhu
Indoor deepening: Lily, Aping Zhang, Fanxing Zhang, Jolie Zhu
LED display content design: Yutaka Kawai
Photo credits：ArchiTranslator
Clients：Xi’an Kaiying Industrial Operation Co., Ltd.
Brands / Products used in the project：Cultural tiles-Yixing Hete Ceramics Special Effects Co., Ltd.; Floor tiles-Darren; Paint-Nippon Paint
